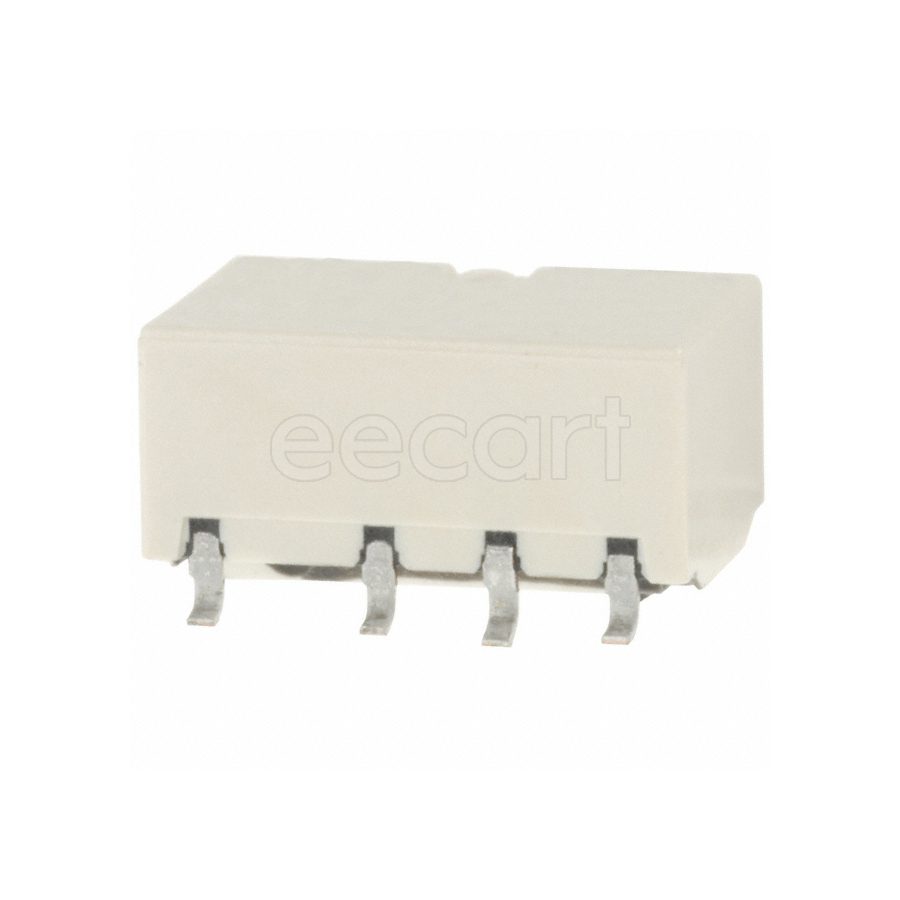

G6K-2G DC5
Manufacturer:
Omron
Mfr.Part #:
G6K-2G DC5
Datasheet:
Description:
Signal Relays SMD/SMT 21.1 mA Non-Latching Coil Voltage (DC):5 V
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 60 V |
| Length | 10 mm |
| Width | 6.5 mm |
| Termination | Gull Wing |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 125 V |
| Number of Pins | 8 |
| Height | 5.4 mm |
| Packaging | Tube |
| Depth | 6.5 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Material(Contact Finish) | Gold, Silver |
| Current Rating | 2 A |
| Max Current Rating | 1 A |
| Max Voltage Rating (DC) | 60 V |
| Number of Contacts | 2 |
| Ambient Temperature Range High | 70 °C |
| Throw Configuration | DPDT |
| Contact Resistance | 100 mΩ |
| Max Voltage Rating (AC) | 125 V |
| Coil Voltage (DC) | 5 V |
| Coil Current | 21.1 mA |
| Coil Type | Non-Latching |
| Coil Resistance | 237 Ω |
| Relay Type | Telecom |
| Operate Time | 3 ms |
| Release Time | 3 ms |
| Contact Current Rating | 1 A |
| switching current | 1 A |
| power consumption | 100 mW |
| Termination Style | J Lead |
| Switching Voltage | 125 VAC, 60 VDC |
| Coil Power | 100 mW |
| Schedule B | 8536410020 |
| Must Operate Voltage | 4 V |
| Must Release Voltage | 500 mV |
| Contact Form | DPDT (2 Form C) |
